Nirin - Quick Start Guide

Logging in to the dashboard

The primary way to use the NCI cloud is via the web dashboard. To log in, follow these steps:

1. Visit https://cloud.nci.org.au
2. Select 'NCI' in the domain field
3. Enter your NCI username, and your NCI password
4. Click on the "Sign In" button.

You will be taken to your default project overview page. If you are a member of multiple cloud projects you can select the project to view from the drop-down box on the top left of the screen.

Setting up a key pair

If you are using Nirin for the first time, ensure at least one key pair exists under your account.

1. Navigate to "Key Pairs" under the "Compute" menu on the left of the screen, then either:
   1. "Import Public Key" if you have an existing key pair you wish you use (make sure that the file you upload is the public key, typically called something.pub , often id_rsa.pub in your ~/.ssh directory).
   2. "Create Key Pair" to set up a new key pair.

Setting up a single key pair is a one-time operation. This is the minimum requirement to get started using this guide; more complex workflows or security models may require multiple key pairs.

Creating your first instance

Creating an instance in the dashboard is done using the Launch Instance wizard, which takes you through a number of dialogs collecting information about the instance to be created. Follow the steps below to create a basic instance.

1. Log in to the dashboard.

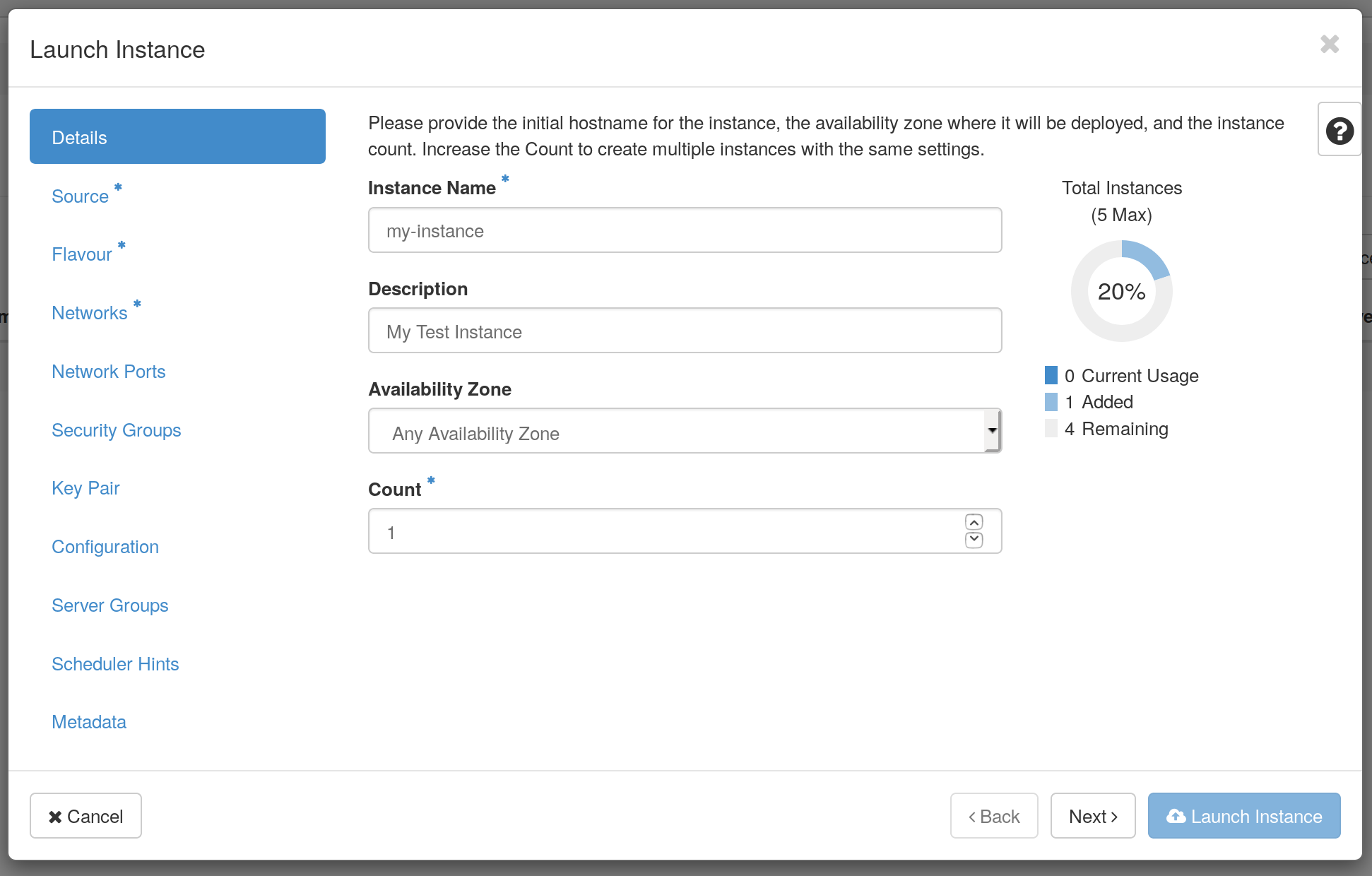

2. Click on the Project → Compute → Instances tab and press “Launch Instance” to start a virtual machine. The Launch Instance dialog will appear, open on the Details tab. Enter the instance name and a description, then click on the "Next" button to move to the Source tab.

3. In the Source tab select an appropriate image from the list and click on the up arrow to select it, then click "Next" to move to the Flavor tab.

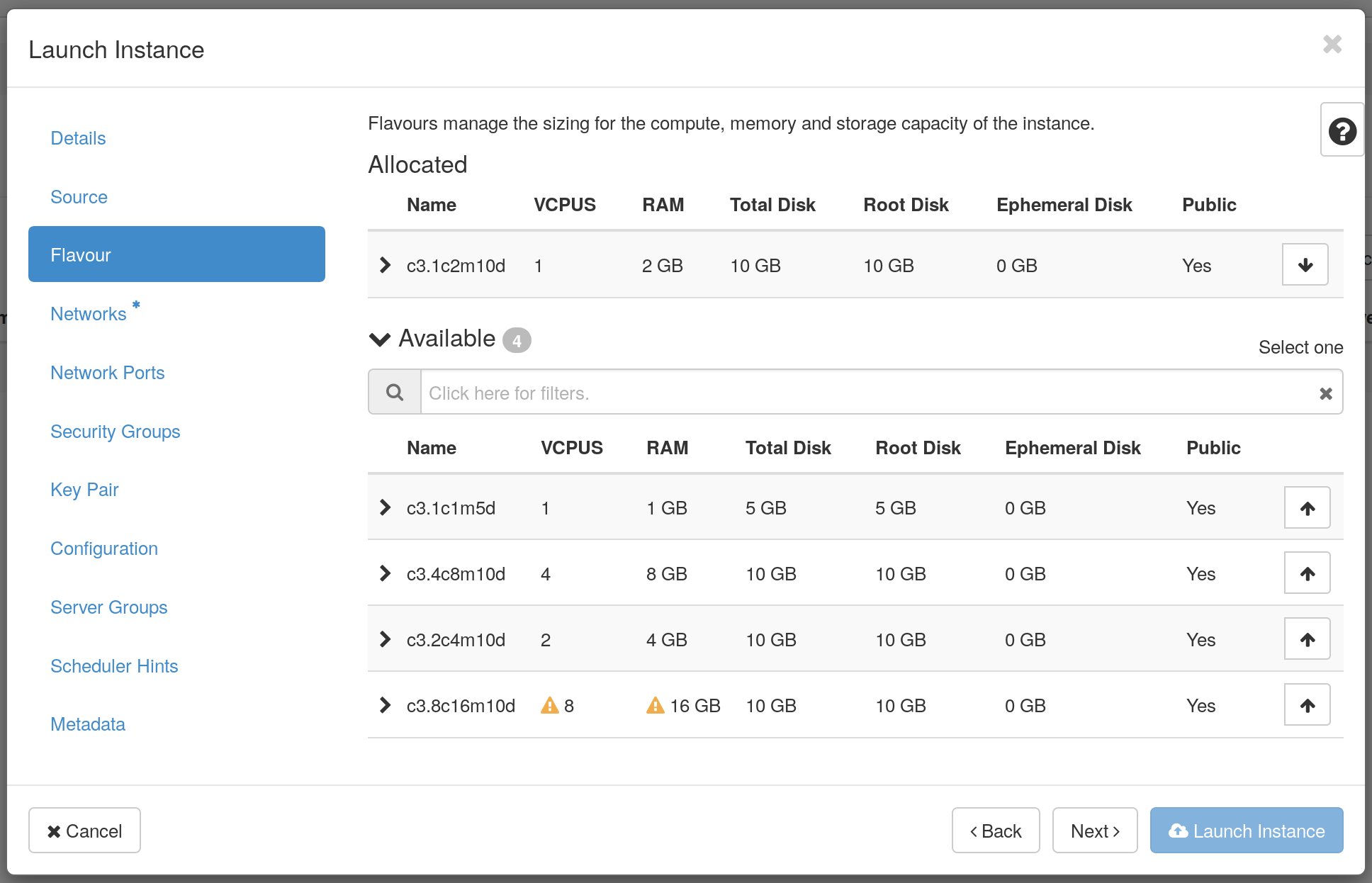

4. In the Flavor tab select an appropriate flavour and click on the up arrow to select it, then click "Next" to move to the Networks tab. See Appendix A for more information about flavours.

5. In the Networks tab you should find that your project network has been selected by default. Click on the Security Groups tab to proceed.

6. In the Security Groups tab you should find that the Default security group is selected by default. Click on the up arrow next to the ssh security group to select it as well, and then click on "Next" to proceed to the Key Pair tab.

7. In the Key Pair tab you should find that the key pair you created earlier is selected by default. You can also create or import a key pair at this stage if you have not yet done so.

8. At this point the instance is set up fully, and you can click on the "Launch Instance" button to start the instance. Once the instance has been created you will see it in the table in the Project → Compute → Instances tab.


Once the Status becomes "Active" the instance is up and running.

Using Floating IP addresses

The instance created in the previous section has a network connection with a private IP address (10.0.0.18), and can connect to hosts on the Internet, but it is not accessible from the wider Internet. In order to access it externally you need to attach a floating IP to it - this is an externally accessible address that will forward traffic through to the instance on its private address. Follow the steps below to allocate a floating IP and attach it to the instance created previously.

1. Log in to the dashboard.

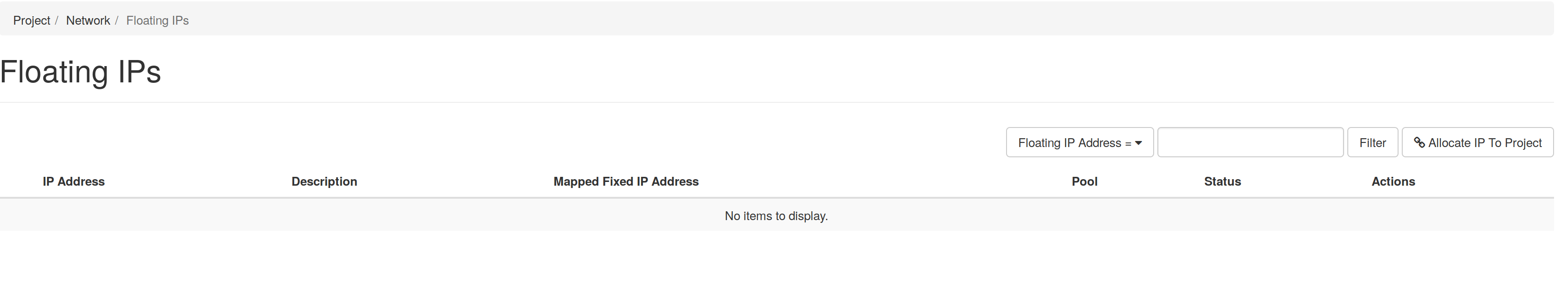

2. Click on the Project → Network → Floating IPs tab

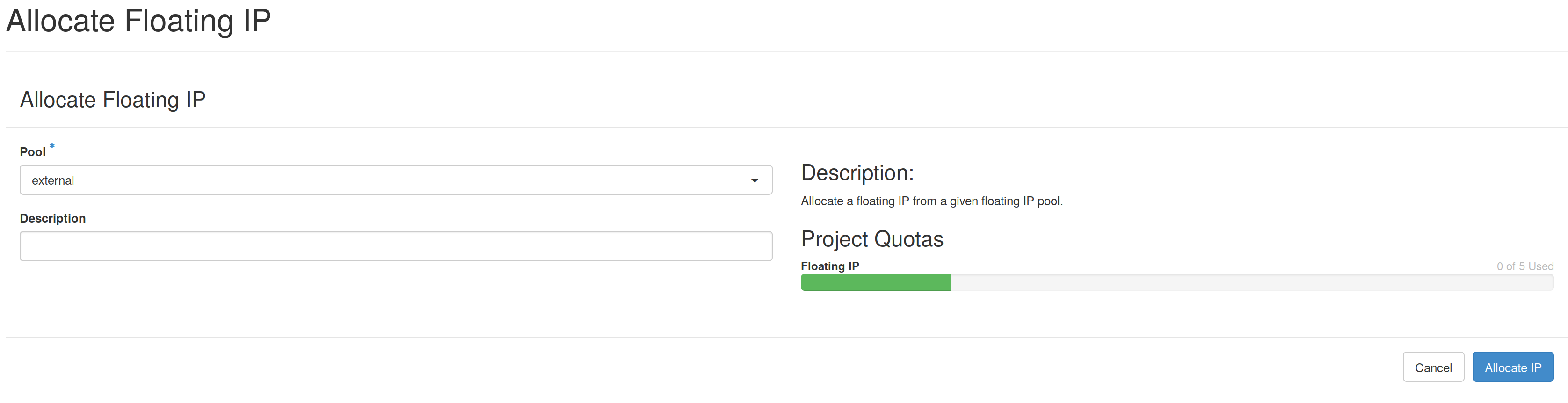

3. Click on the "Allocate IP to Project" button. This will bring up the floating IP allocation dialog. Select "external" from the pool list and click on the "Allocate IP" button. You can enter a description if you choose, but it is not essential.

4. Once the floating IP is allocated you can see it in the list:

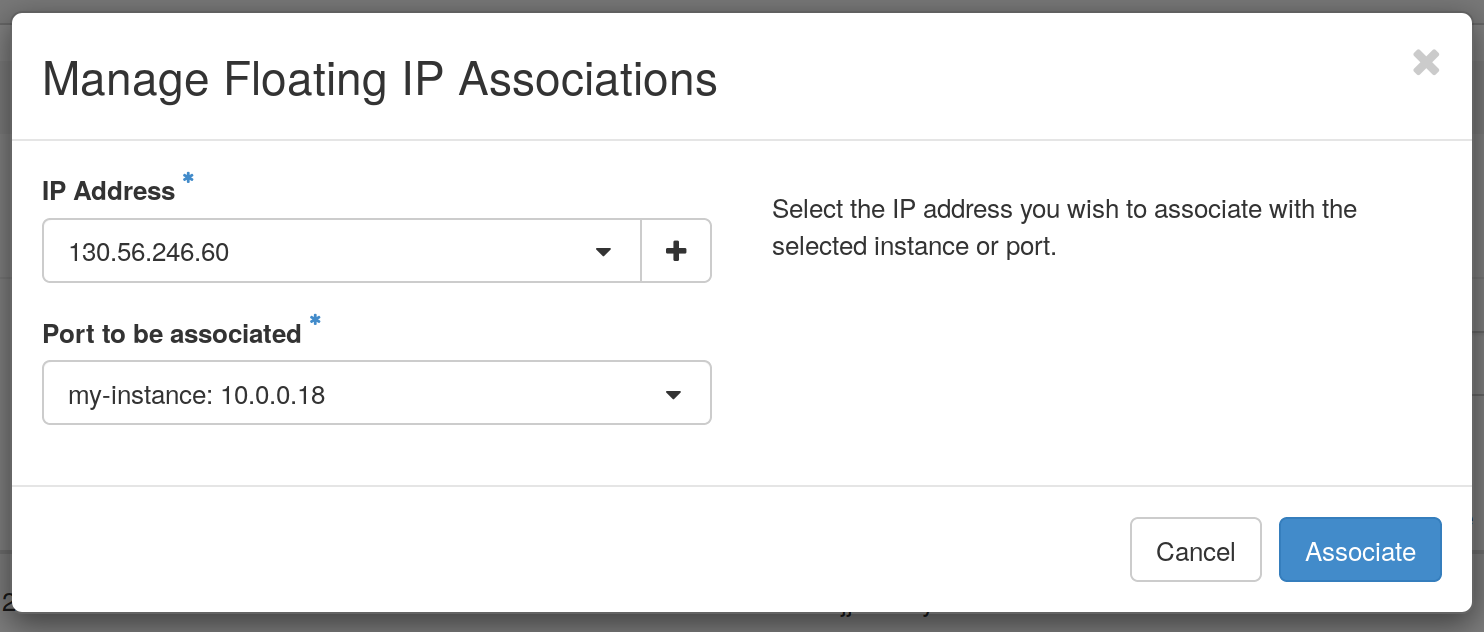

5. Click on the "Associate" button, and select your instance from the port list. Click the "Associate" button to complete the process.

6. The list of floating IPs will now show your instance and its private IP address.

7. At this point you can ssh to the floating IP address to access your instance. If you selected an Ubuntu image as the boot source, log in as user "ubuntu", e.g. ssh ubuntu@130.56.246.60.

When a floating IP address is no longer required, it can be released back to the pool by pressing "Release Floating IP" in the "Actions" column.

Persistent Volume Storage

Instances in the cloud have a small (10GB) local disk that is intended to hold only the operating system install and its essential files. Additional storage is provided through the use of volume storage. Volumes are effectively an external drive that can be attached to and detached from the instance as required - the volume continues to exist even after the instance is deleted.

To create a volume and attach it to an instance follow these steps:

1. Log in to the dashboard.
2. Click on the Project → Volumes → Volumes tab

3. Click on the "Create Volume" button to bring up the Create Volume dialog, enter a name and set the size. Leave the volume source and type unchanged. Finally, click on the "Create Volume" button to submit the request.

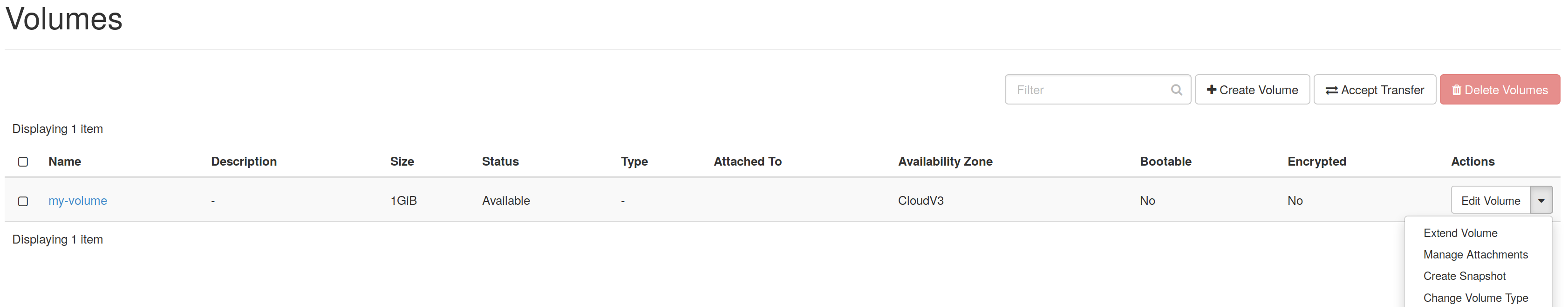

4. The volume creation process will take a few seconds. Once it is complete the volume will show in the volume list as Available. Select "Manage Attachments" from the Actions menu on the right, and the Manage Volume Attachments dialog will pop up.

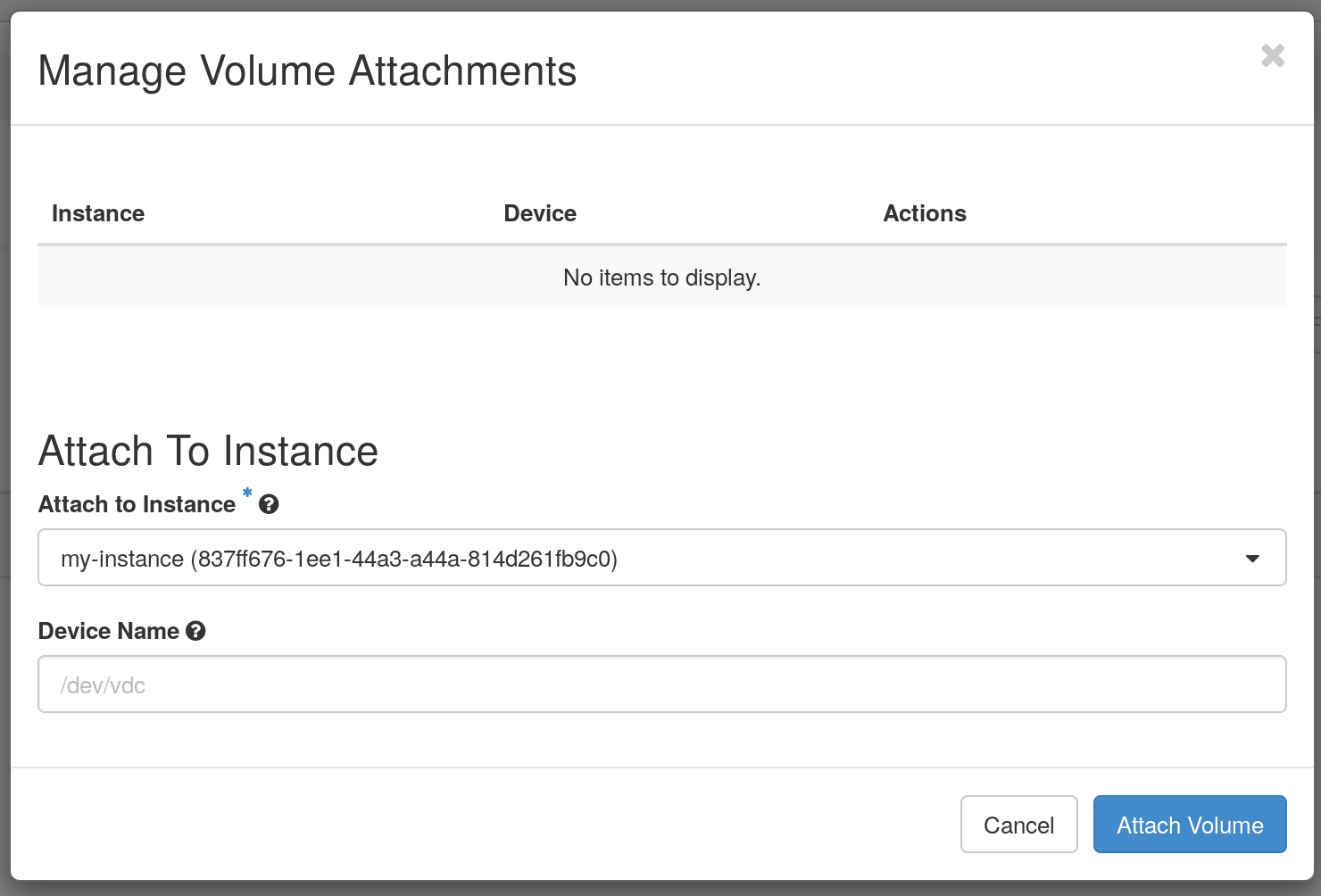

5. Select your instance from the list. Leave the device name untouched. Finally, click on the "Attach Volume" button.

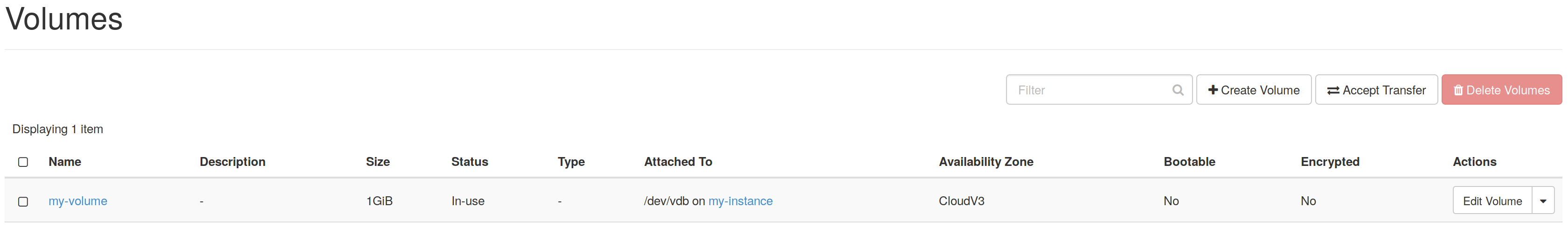

6. The volume list will show that the volume status is In-use, and that it is attached to your instance.


7. Log in to your instance and run the lsblk  command to list the block devices. You should see your volume presented on the device listed previously.

   ubuntu@my-instance:~$ lsblk
   NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
   vda     252:0    0   10G  0 disk
   ├─vda1  252:1    0  9.9G  0 part /
   ├─vda14 252:14   0    4M  0 part
   └─vda15 252:15   0  106M  0 part /boot/efi
   vdb     252:16   0    1G  0 disk



8. At this point the volume can have a filesystem created on it, and it can be mounted and used.

   ubuntu@my-instance:~$ sudo mkfs.ext4 /dev/vdb
   mke2fs 1.44.1 (24-Mar-2018)
   Creating filesystem with 262144 4k blocks and 65536 inodes
   Filesystem UUID: 28813bd6-e50a-40ef-864b-9f4aaa541eac
   Superblock backups stored on blocks:
   	32768, 98304, 163840, 229376

   Allocating group tables: done
   Writing inode tables: done
   Creating journal (8192 blocks): done
   Writing superblocks and filesystem accounting information: done

   ubuntu@my-instance:~$ sudo mkdir /data
   ubuntu@my-instance:~$ sudo mount /dev/vdb /data
   ubuntu@my-instance:~$ sudo touch /data/test
   ubuntu@my-instance:~$ ls /data/test
   /data/test

Appendices

A. Flavours

NCI offers a range of virtual machine flavours to suit a range of needs. The name of the flavour encodes information about the number of virtual CPUs, and the amount of memory and local disk space that the flavour provides; for example:

8c16m10d
- CPUS: 8
- Memory: 16 GB
- Local Disk: 10 GB

The standard set of flavours has 2GB of memory for each virtual CPU, and 10GB of local disk, i.e. 1c2m10d, 2c4m10d, and so on. The largest standard flavour is 8c16m10d, however special purpose flavours can be supported in certain cases.

For more information, see: Nirin Flavors and Charge Rates

B. Storage

Local Disk and Volume Storage: Local disk is only for the operating system install. This storage is not backed up anywhere, and only exists as long as the instance exists. It is strongly recommended that you deploy your instances using an automated process that permits you to rebuild an instance any time it is necessary, and to use persistent storage for anything that cannot be recreated easily.

Persistent storage is provided in the form of volume storage, and is backed onto a redundant and reliable storage backend. In addition, NCI provides tape based storage which is backed up across two remote sites - for more information on this, please contact the NCI Help Desk at help@nci.org.au.

Overview of storage types

C. Access to the Global File-systems

The NCI Global filesystems can be accessed via NFS exports. Please see NFS Export Policy for global file-systems to Nirin for more details.

D. Additional Information / Policy matters

• Please ensure that the Operating systems and packages are updated regularly to incorporate security and performance improvements.
• NCI uses the IP address range supplied by the Australian National University. These IP addresses are regularly scanned for security vulnerabilities and monitored for suspicious network traffic and behaviour. NCI reserves the right to shut down and lock your virtual machine in the case your virtual machine is not secure, has been compromised and/or is involved in a suspicious activity. NCI staff will inform the virtual machine owner and the project CI with the reasons for shutting down the virtual machine.
• NCI charges for instances in ‘shutdown’ state as shutdown instances consume resources on the hypervisor. If you do not wish to be charged for shutdown instances, please terminate them or shutdown the instance and then shelve and shelve-offload the instance.
